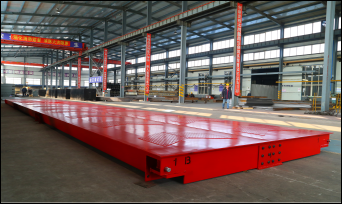

PML-N main features are the platforms are connected to each other directly,no connection boxes between, this is an updated version based on old versions,
the new design performs better in weighing heavy trucks and avoids old version
problems. Once this design is launched, it becomes popular immediately in some
markets, it is engineered to heavy, frequent, day- to -day use. Heavy traffic and
over-the-road weighing.
Available length | 6,8,9,10,12,14,16,18,20,21,28,22,24,30,40m |
Available with | 3,3.2,3.4,3.6,4m |
Capacity | 30 to 120ton |
Load cell quantity | 6m:4pcs 8-12m:6pcs 14-18m:8pcs 20-24m:10pcs |
Deck thickness | 8,10,12mm flat plate or chequered plate |
Each module size | Platform usually 5680mm, or else average segmentation |
Surface processing | Painted&galvanized available |
Full steel | Yes |
Color | Customized |
